Intelligent Balanced Concentrator-TIANS Engineering Technology Group

Introduction By introducing advanced European technology and designing tailored to the characteristics of batch production of traditional Chinese medicine, we achieve "one click" fully automatic operation and CIP cleaning, optimize energy efficiency distribution, and save more than 50% of energy compared to conventional dual effect concentrators. This brings huge benefits to users in terms of overall equipment investment, operating costs, and reducing staff and increasing efficiency. It has been widely used in industries such as traditional Chinese medicine extraction, seasoning, and sugar production.

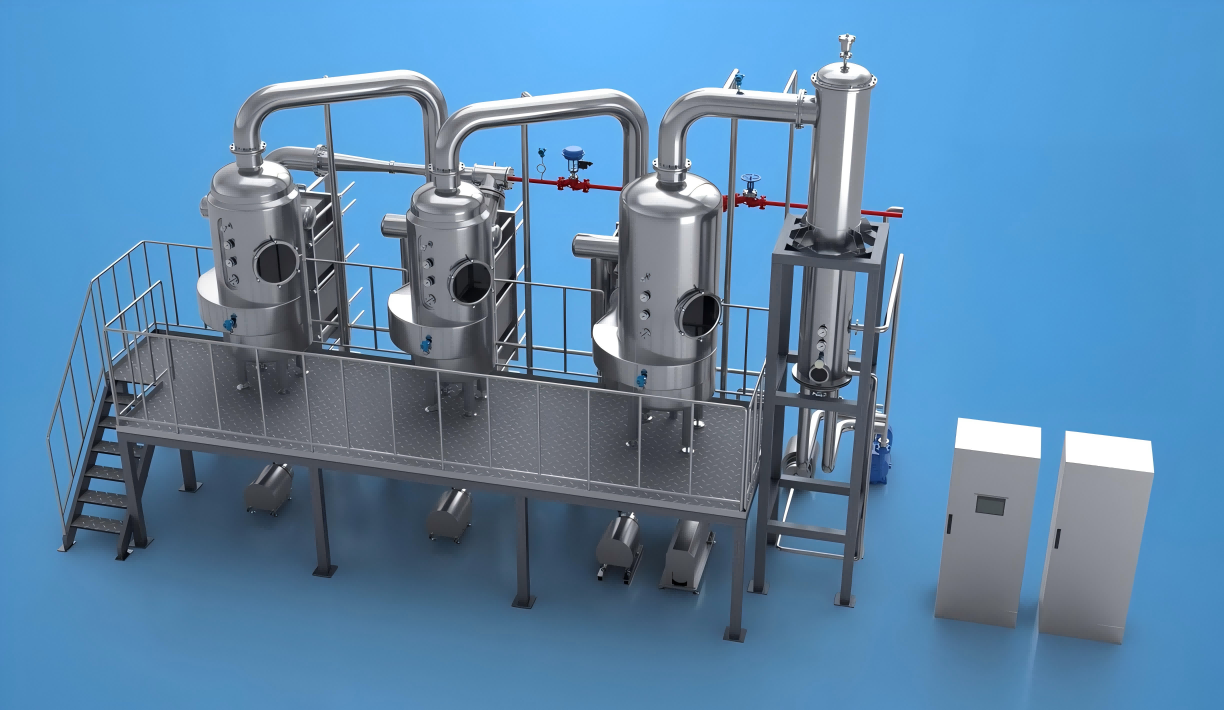

: Multi-Effect Plate Type

The equipment height is low, with a total height of 5.5~5.8m

Convenient for cleaning (specifically equipped with a CIP cleaning system and multiple fully automatic cleaning modes, with multiple actual project cases)

Can be disassembled to check the cleaning effect; process verification can be carried out

: Multi Effect Falling Film

Shell-and-tube type can be designed and customized, with good flexibility, but it has requirements for design accuracy and installation conditions;
If the flow rate exceeds 10t/h, it is recommended to use the falling film;
The pressure drop is zero, and the required heat transfer temperature difference is small;
The liquid inventory in the system is small.

Small Amount of Cream

Even for high evaporation equipment, the minimum amount of cream collected can reach 40L.
Easy to Operate

Automatic operation, one click start stop of equipment, and unmanned intervention.
Intelligent Cleaning

Equipped with CIP cleaning, one click start stop.
Efficient and Energy-Saving

The overall operating energy consumption is equivalent to 45% -65% of that of traditional concentrators, with dual effect ethanol extraction concentration and ethanol damping device to avoid ethanol loss.
Defoaming Technology

Implement program defoaming for materials that are prone to foaming.
Low Temperature Concentration

Ensure energy conservation while achieving a concentration process of ≤ 60 ° C.
Wide Range

The evaporation capacity of a single unit ranges from 0.5 tons/h to 15 tons/h.
